Nissan Driver-Assist Features: When Do Cameras and Sensors Need Service?

Modern Nissan vehicles can do much more than get you from Bloomington to your next destination. Depending on the model and available equipment, Nissan driver-assistance technology can help monitor traffic, detect vehicles around you, maintain your position in a lane, and provide warnings when certain hazards are detected.

Features such as ProPILOT Assist, Automatic Emergency Braking, Intelligent Blind Spot Intervention, Lane Departure Warning, and Intelligent Around View Monitor can rely on cameras, radar sensors, sonar, and other vehicle systems working together.

Most of the time, these technologies operate in the background without requiring much thought from the driver.

But situations such as a windshield replacement, collision, bumper repair, wheel alignment, or an ADAS warning can mean the system needs to be inspected or calibrated.

That is where proper Nissan camera calibration and Nissan sensor calibration can become important.

At Community Nissan of Bloomington, we provide professional vehicle diagnostics and service to help identify issues affecting your Nissan's driver-assistance technology. If your Nissan is displaying an ADAS warning or a driver-assistance feature is not operating as expected, our service team can help determine what may be causing the problem.

What Is ADAS and Why Does Your Nissan Need It?

ADAS stands for Advanced Driver Assistance Systems.

These systems use a combination of cameras, radar sensors, sonar, vehicle sensors, and computer systems to monitor conditions around the vehicle and provide information or assistance to the driver.

Depending on the Nissan model and equipment, these technologies can support features such as:

·         Automatic Emergency Braking

·         Intelligent Forward Collision Warning

·         Lane Departure Warning

·         Intelligent Lane Intervention

·         Intelligent Blind Spot Intervention

·         ProPILOT Assist

·         Intelligent Cruise Control

·         Rear Cross Traffic Alert

·         Intelligent Around View Monitor

The exact technology varies by Nissan model, year, and trim.

For example, Nissan documentation describes certain ProPILOT Assist systems as using a multi-sensing front camera to monitor lane markings and a front radar sensor to measure the distance to vehicles ahead. Some newer Nissan systems use additional cameras, side radar sensors, and sonar depending on the vehicle and equipment.

Because these systems depend on accurate information from their sensors, their components need to remain properly positioned, unobstructed, and functioning according to Nissan specifications.

When Does a Nissan Need Camera or Sensor Service?

There is not one universal mileage interval for ADAS calibration.

Instead, inspection or calibration may be necessary after certain repairs, changes, or conditions involving the systems' cameras and sensors.

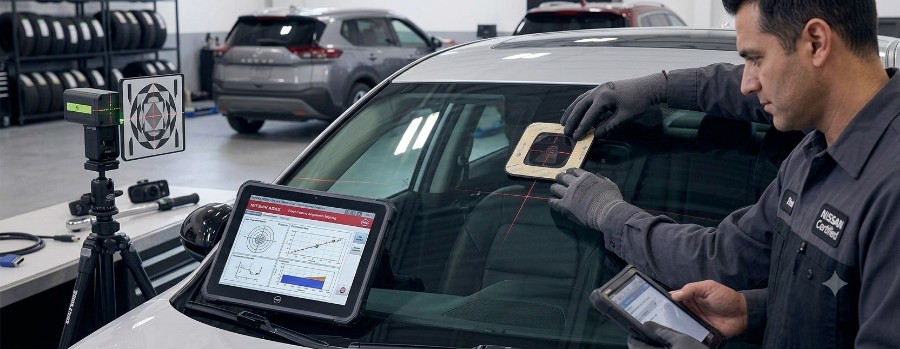

1.     Windshield Replacement

Some Nissan models use a camera mounted behind the windshield.

If the windshield is replaced, work around the camera can affect its position or the conditions under which it operates. Depending on the specific Nissan model and repair procedure, calibration or other system checks may be required.

This is one reason it is important to follow the applicable Nissan repair procedures rather than assuming the camera will automatically be correctly aligned after glass replacement.

2.     Collision or Front-End Repairs

A collision can affect ADAS components even when the damage is not immediately obvious.

Radar sensors may be located behind or around the front bumper area, while other cameras and sensors can be positioned throughout the vehicle.

An impact, bumper repair, replacement of a component, or damage to a sensor mounting area can potentially affect the system.

Nissan's current collision-repair guidance states that after certain ADAS component removal or replacement—and even after vehicle alignment—the applicable calibration procedure must be performed using Nissan-approved procedures and equipment.

3.     Wheel Alignment or Suspension Work

Modern ADAS systems do not operate independently of the rest of the vehicle.

Changes involving wheel alignment, steering, suspension, or sensor positioning can affect systems that depend on the vehicle's orientation and sensor information.

That does not mean every alignment automatically requires ADAS calibration. The appropriate procedure depends on the Nissan model, the system involved, and the work performed.

4.     ADAS Warning Messages

Your Nissan may display a warning when a driver-assistance system is temporarily unavailable or detects a problem.

Sometimes the cause is simple.

Nissan notes that cameras and radar can be affected by dirt, mud, snow, ice, heavy rain, fog, direct sunlight, or other environmental conditions. Obstructions around the sensor areas can temporarily prevent certain systems from operating.

If the warning remains after the obstruction or environmental condition has cleared, the vehicle should be inspected.

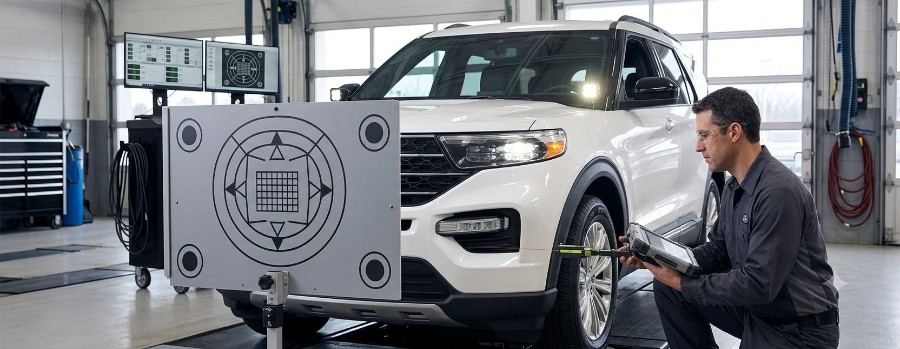

What Is Nissan Camera Calibration?

A camera needs to be positioned and configured correctly so the vehicle's computer can interpret the information it receives.

Nissan camera calibration is the process of setting up or calibrating a camera-based driver-assistance system according to the requirements for the particular Nissan model and system.

The exact procedure varies by vehicle.

Depending on the system, calibration may involve specialized targets, measurements, diagnostic equipment, software, and specific workshop conditions.

It is not simply a matter of pointing a camera in approximately the right direction.

For example, Nissan's driver-assistance systems can use front cameras to identify information such as lane markings and surrounding vehicles. If the camera's position or calibration is incorrect, the information being supplied to the vehicle's control systems may not be interpreted as intended.

What Is Nissan Sensor Calibration?

Cameras are only one part of Nissan's driver-assistance technology.

Depending on the vehicle, ADAS can also use radar sensors, side sensors, sonar, and other components.

Radar can help detect vehicles and determine information such as their distance and relative movement. Other sensors can help monitor areas around the vehicle for vehicles or obstacles.

Nissan sensor calibration involves ensuring the relevant sensor system is correctly set up according to the applicable Nissan procedures.

This is particularly important when repairs involve areas where ADAS sensors are mounted.

Nissan's collision-repair guidance specifically emphasizes using Nissan-approved calibration procedures, equipment, and diagnostic software when calibration is required.

Why ADAS Calibration Matters After a Collision

After an accident, visible damage is usually the first thing drivers notice.

A damaged bumper, cracked grille, dented body panel, or broken headlamp is easy to see.

But modern Nissan vehicles can also have important sensors and cameras positioned behind or around these components.

That means repairing the visible damage is not necessarily the end of the process.

If an ADAS component has been removed, replaced, moved, or affected by a collision repair, the vehicle may require additional diagnostic checks or calibration based on Nissan's procedures.

This is why Nissan driver-assistance service should be approached as more than simply clearing a warning light.

The goal is to determine whether the relevant systems and components are operating according to the requirements for your particular Nissan.

Keep Your Nissan's Driver-Assistance Technology Working Properly

Driver-assistance technology is designed to support the driver, but these systems have limitations and are not a substitute for attentive driving.

Nissan notes that environmental conditions such as heavy rain, snow, fog, dirt, ice, direct sunlight, and poor lane markings can affect the operation of certain driver-assistance systems.

Keeping camera and sensor areas clean and addressing persistent warnings can help ensure the systems are able to operate as designed.

If your Nissan has recently had a windshield replaced, been involved in a collision, received repairs near a sensor, undergone relevant alignment work, or started displaying an ADAS warning, it is worth having the vehicle properly inspected.

Whether the solution involves diagnosis, cleaning, repair, software procedures, or Nissan camera or sensor calibration, the correct procedure depends on your vehicle and the system involved.

At Community Nissan of Bloomington, we're here to make Nissan service straightforward and convenient.
